Shaping Water with Light.

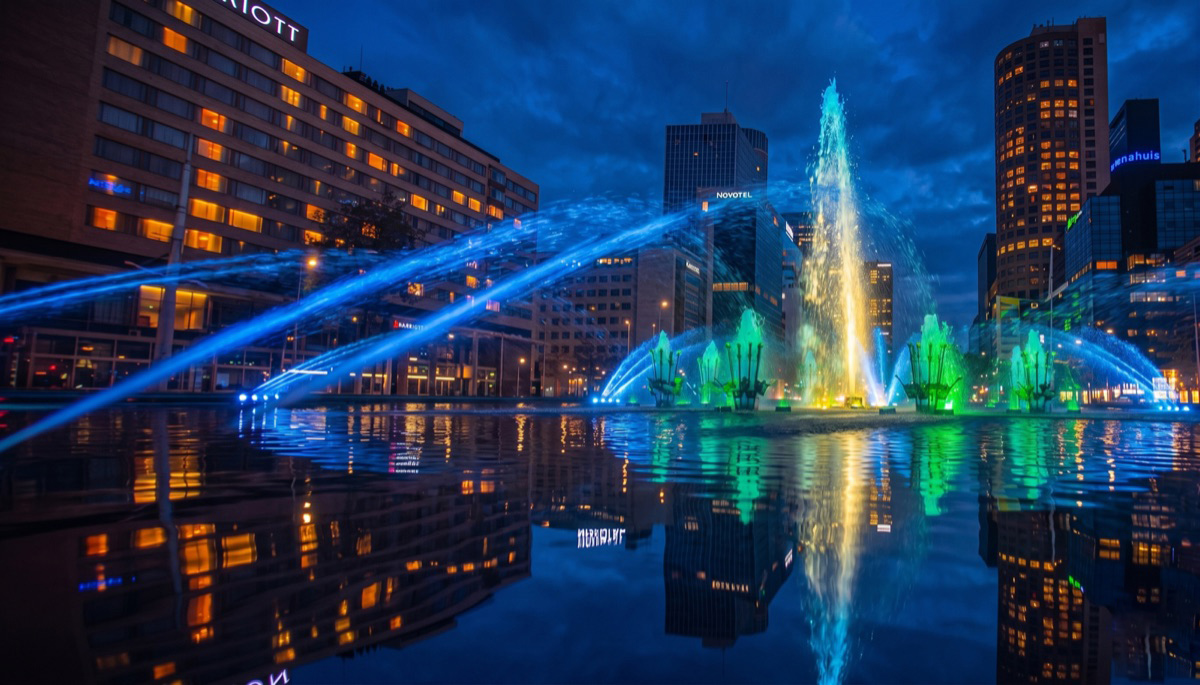

SPLASHY is a underwater luminaire developed for fountains and decorative water features. Engineered with 316 stainless steel housing and ultra-white tempered glass, it delivers consistent submerged illumination at IP68 with IK09 impact resistance, ideal for public spaces, landscapes and architectural projects where performance and visual impact are equally important.

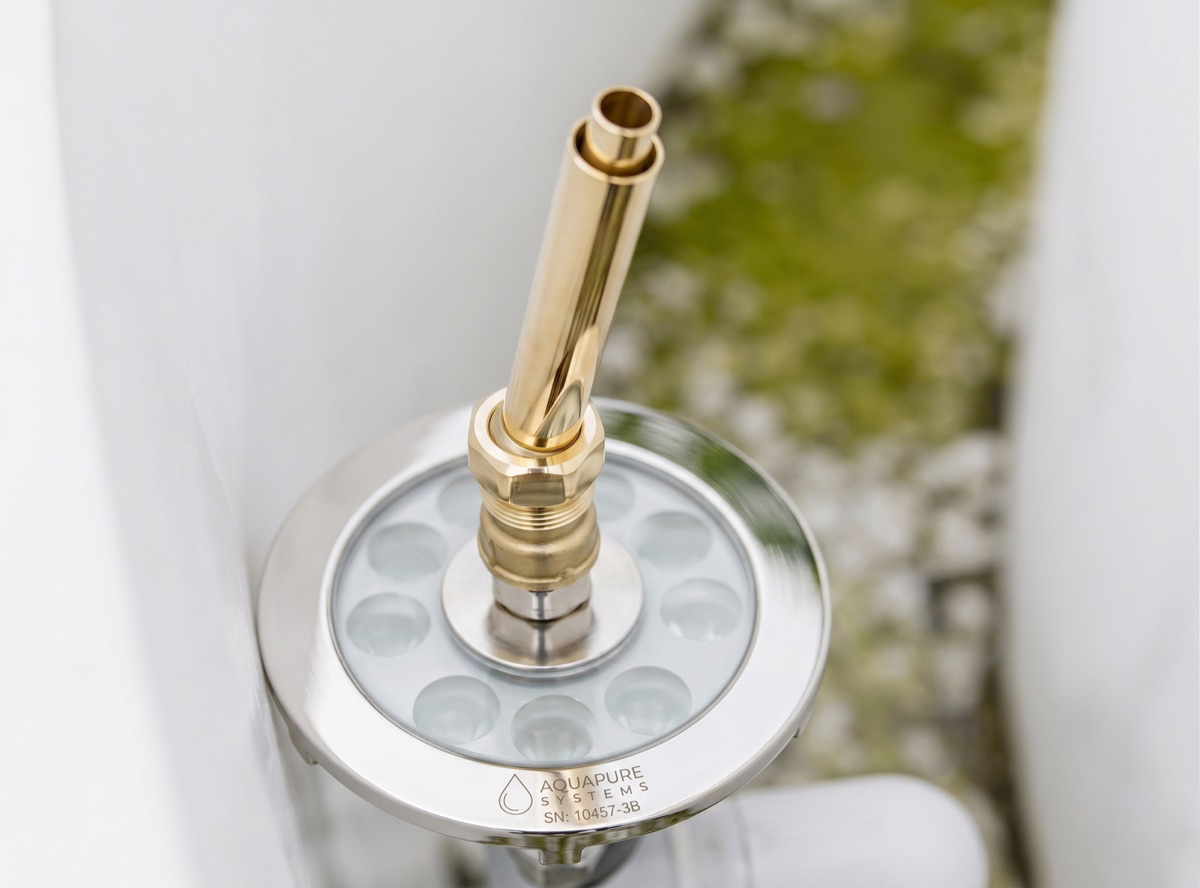

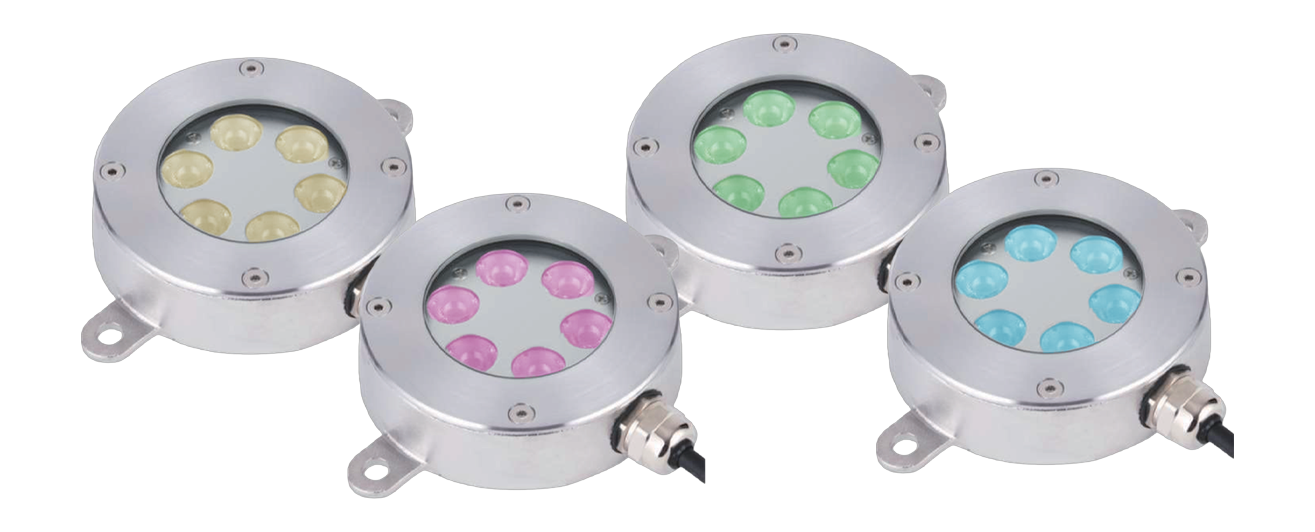

Available in single-color, RGB and RGBW configurations from 12W to 24W with 9 beam-angle options, integrated waterjet pipe fittings (G 1½″ and G ¾″ taper), and full DMX/DALI dimming support.
| جهد الدخل | DC 12V / 24V |
| حماية زيادة الجهد | 1KV (L-N) · 2KV (L/N-PE) |
| الفئة الكهربائية | Class III |
| التعتيم | On/Off · Triac · 1-10V · DALI · DMX512 (built-in/external) · PWM |
| درجة التشغيل | -20°C to +50°C |
| الحماية (IP) | IP68 (submersible) |
| مقاومة الصدمات | IK09 |
| Beam Angles | 10° / 15° / 25° / 45° / 60° / 120° / 10×35° / 10×45° / 10×60° |
| الهيكل | 316 Stainless Steel |
| طريقة التركيب | Many fountain mounting options + integrated waterjet pipe (G 1½″ / G ¾″ taper) |
| Light Window | Ultra-white زجاج مقسى |
| Cable Gland | IP67 Copper Nickel-Coated (or 316 SS optional) |
| نوع LED | SMD3535 |
| العمر الافتراضي | L70B50 > 30,000h |
| دورات التشغيل | >15,000 times |
| CRI | قياسي >80 · اختياري >90 |
| الضمان | 3 سنوات (قابل للتمديد إلى 5) |
| الموديل | الاستهلاك | الإنارة | زاوية الشعاع | CRI | ملاحظات |
|---|---|---|---|---|---|
| NLC-SA12W | 12W | 900 lm | 10°–120° | ≥80 | 6-LED · RGB/RGBW option |
| NLC-SA18W | 18W | 1,350 lm | 10°–120° | ≥80 | 9-LED · RGB/RGBW option |
| NLC-SA24W | 24W | 1,800 lm | 10°–120° | ≥80 | 12-LED · RGB/RGBW option |
* القيم محسوبة على أساس درجة حرارة لون 3000K | ±10% تفاوت
