Brighter Light, Safer Nights

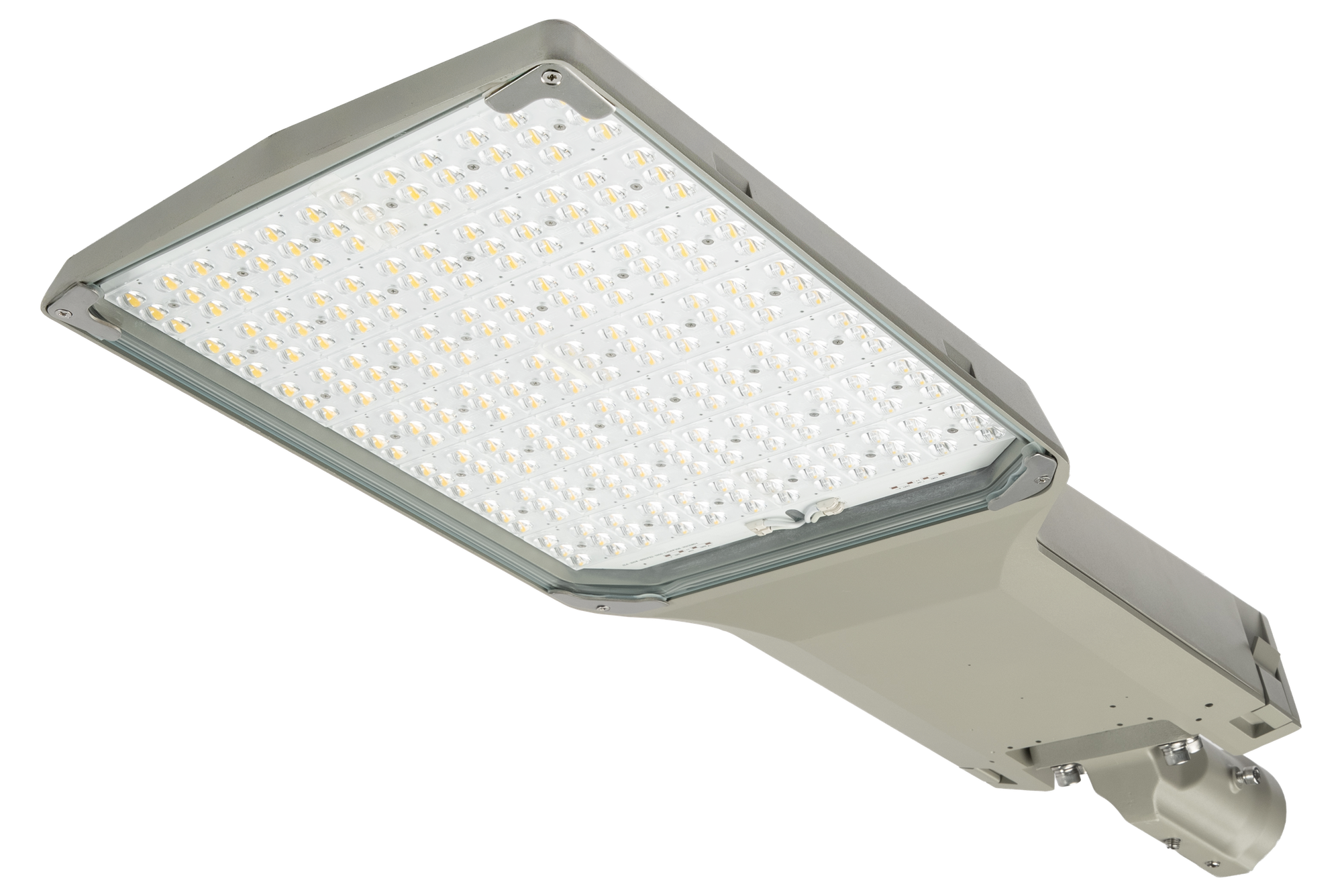

The PADDLE street light covers the widest wattage range in the NLC outdoor portfolio, from 40W to 300W across four sizes (Small to Extra Large). Available in Basic and Plus efficiency versions, it delivers up to 160 lm/W with 0–10V/DALI dimming for smart city applications.
| جهد الدخول | 100–240VAC / 277VAC · 50/60Hz |
| معامل الطاقة | >0.95 |
| تشويه التوافقيات | <15 |
| حماية من الطفرات | 10KV standard · 20KV on request |
| الفئة الكهربائية | Class I |
| SDCM | <5 |
| درجة حرارة التشغيل | -20°C to +55°C |
| رطوبة التشغيل | 10–90% RH |
| الأبعاد | Small: L514×W210×H111 · Medium: L653×W235×H138 · Large: L845×W235×H138 · XL: L970×W340×H150 mm |
| الهيكل الخارجي | Die-Cast Aluminum |
| التثبيت | Side Entry / Vertical Pole |
| البصريات | UV-Resistant PC / PMMA |
| نوع المصباح | SMD3030 / SMD5050 |
| العمر الافتراضي | L70B50 > 100,000h | L80B20 > 50,000h |
| التعتيم | 0–10V / 1–10V / DALI |
| Optional Accessories | ZHAGA Socket · Photocell · Smart Controller |
| Version | Wattage | الكفاءة | لومن النظام |
|---|---|---|---|
| Basic | 40W | 145 lm/W | 5,800 lm |
| 60W | 145 lm/W | 8,700 lm | |
| Plus | 40W | 160 lm/W | 6,400 lm |
| 60W | 160 lm/W | 9,600 lm |
| Version | Wattage | الكفاءة | لومن النظام |
|---|---|---|---|
| Basic | 75W | 145 lm/W | 10,875 lm |
| 100W | 145 lm/W | 14,500 lm | |
| Plus | 75W | 160 lm/W | 12,000 lm |
| 100W | 160 lm/W | 16,000 lm |
| Version | Wattage | الكفاءة | لومن النظام |
|---|---|---|---|
| Basic | 150W | 145 lm/W | 21,750 lm |
| 180W | 145 lm/W | 26,100 lm | |
| Plus | 150W | 160 lm/W | 24,000 lm |
| 180W | 160 lm/W | 28,800 lm |
| Version | Wattage | الكفاءة | لومن النظام |
|---|---|---|---|
| Basic | 200W | 145 lm/W | 29,000 lm |
| 240W | 145 lm/W | 34,800 lm | |
| 300W | 145 lm/W | 43,500 lm | |
| Plus | 200W | 160 lm/W | 32,000 lm |
| 240W | 160 lm/W | 38,400 lm | |
| 300W | 160 lm/W | 48,000 lm |
* Values based on CCT 4000K | ±10% tolerance · Standard CRI >70 · Optional CRI >80
